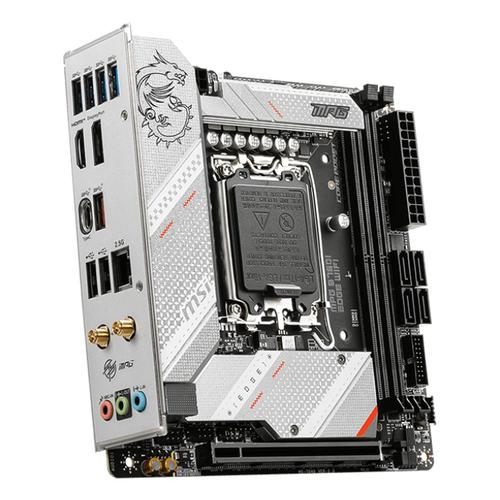

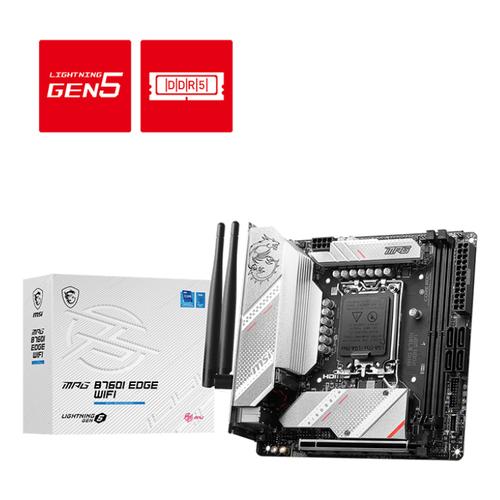

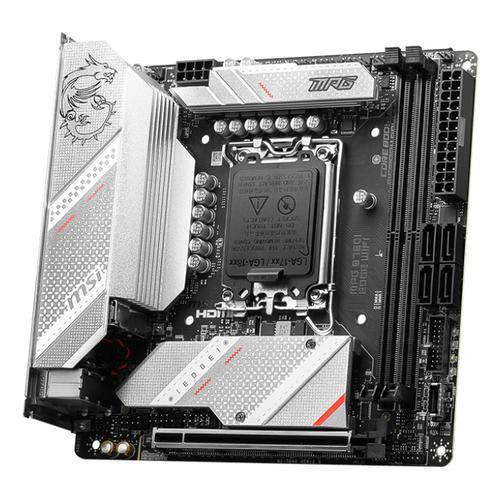

MSI MPG B760I EDGE WIFI moederbord Intel B760 LGA 1700 mini ATX

 216,19

Klanten geven Compux een 4.8 uit 5
Verzending binnen 1-2 werkdagen
Gratis bezorging vanaf €150.-
SKU: MSI-MPGB760IEDGEWI
op voorraad

MSI MPG B760I EDGE WIFI.

Processorfabrikant: Intel, Processor socket: LGA 1700, Compatibele processors: Intel? Celeron?, Intel? Pentium? Gold.

Ondersteunde geheugen product types: DDR5-SDRAM, Maximum intern geheugen: 96 GB, Geheugen slots product type: DIMM.

Ondersteunde opslagstationinterfaces: M.2, SATA III, Soorten RAID: 0, 1, 5, 10.

Ethernet interface product type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 6E (802.11ax), Wi-Fi-standaarden: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax).

Component voor: PC, Moederbord form factor: mini ATX, Moederbord chipset familie: Intel

Processorfamilie:Intel
Formaat moederbord:mini ATX
Chipset moederbord:Intel B760
Geluidskanalen:7.1 kanalen
Audiochip:Realtek ALC897
Fabrikant:Intel
Processor socket:LGA 1700
Compatibele processors:Intel? Celeron?, Intel? Pentium? Gold
Max. aantal SMP-processoren:1
PCI Express x1 (Gen 3.x):2
Aantal M.2 sloten:2
product type geheugen:DDR5-SDRAM
product type geheugen slots:DIMM
Maximum intern geheugen:96 GB
Aantal geheugenslots:2
Non-ECC:Ja
Geheugen kanaal:Dubbelkanaals
Ondersteunde kloksnelheid:4800 MHz, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200
Aantal VGA poorten:0
Aantal DVI-D poorten:0

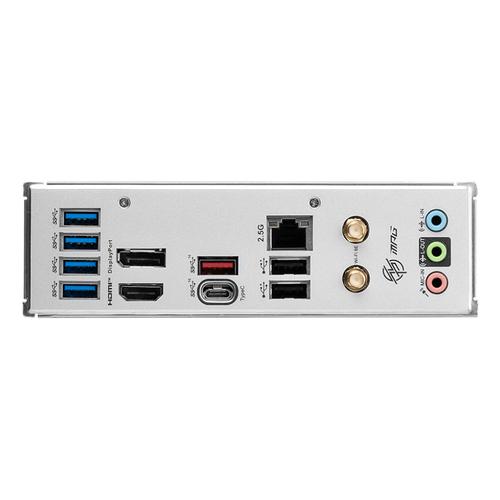

Aantal HDMI poorten:2
HDMI versie:2.1
Aantal DisplayPorts:1
DisplayPort versie:1.4
Aantal USB 2.0-poorten:2
Aantal SATA aansluitingen:0
CPU-ventilatorconnector:Ja
TPM connector:Ja
Voorpaneel-connector:Ja
RGB LED-aansluitrail:Ja
RAID levels:0, 1, 10, 5
Ethernetpoort:Ja
Ethernetsnelheid:2.5 Gigabit Ethernet
Wi-Fi:Ja
Wi-Fi-standaarden:802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth:Ja
Bluetooth versie:5.3
BIOS product type:UEFI AMI
BIOS geheugen:256 Mbit
Breedte:170 mm
Diepte:170 mm
